r/homeautomation • • 11h ago

PERSONAL SETUP 60 channels of per-breaker energy monitoring, at the finish line.

Thumbnail
gallery
150 Upvotes

Since, I have this odd obsession with monitoring and tracking energy data....

I have been busy working on a solution to monitor, ALL of the energy. Not some of the energy, but, ALL of the energy.

I initially was using CT Clamps, however, this gets very messy, and the quantity of cables becomes a problem. I ended up finding some 20 conductor cable, which has been working perfectly for this task, allowing me to monitor the 30 slot panel on the left, with only 4 total cables, and a single cable for the right panel which only contains 6x 240v loads.

The star of the show is the KinCony N30, running ESPHome. Yes... I should have picked up the N60. But- I didn't know I would be using 60 channels until it happened. So, instead I have a pair of N30s.

All of the data collected is fed into..... home assistant, MQTT, prometheus, emoncms, and my software, rpdu2mqtt (It originally just monitored my PDUs).

I have been COMPLETELY ripping out and replacing all of the energy infrastructure at this house which I moved into last winter... This is due to the solar build out I have been working on. My goals have been to more or less, eliminate having an electric bill.

Since, I am cheap, I have done 100% of the work myself. Trenching, Welding, Construction, Electrical, Plumbing... All of it.

As of this month, It is currently hitting 90% of my net usage, which is fantastic. But, I have another dozen or so panels to install to get this number boosted up a bit. Right now, HVAC needs are at the lowest time of the year. During the summer.... Significantly more energy is required here.

Suppose- thats all. Just sharing my project.

Edit- minor detail- but, all of the voltage references, and CT cables are phase-marked with heat shrinking. Split phase- so, not actually a phase- but, Do have to ensure breakers are correctly aligned to the correct pole/voltage sensor.


r/homeautomation • • 22h ago

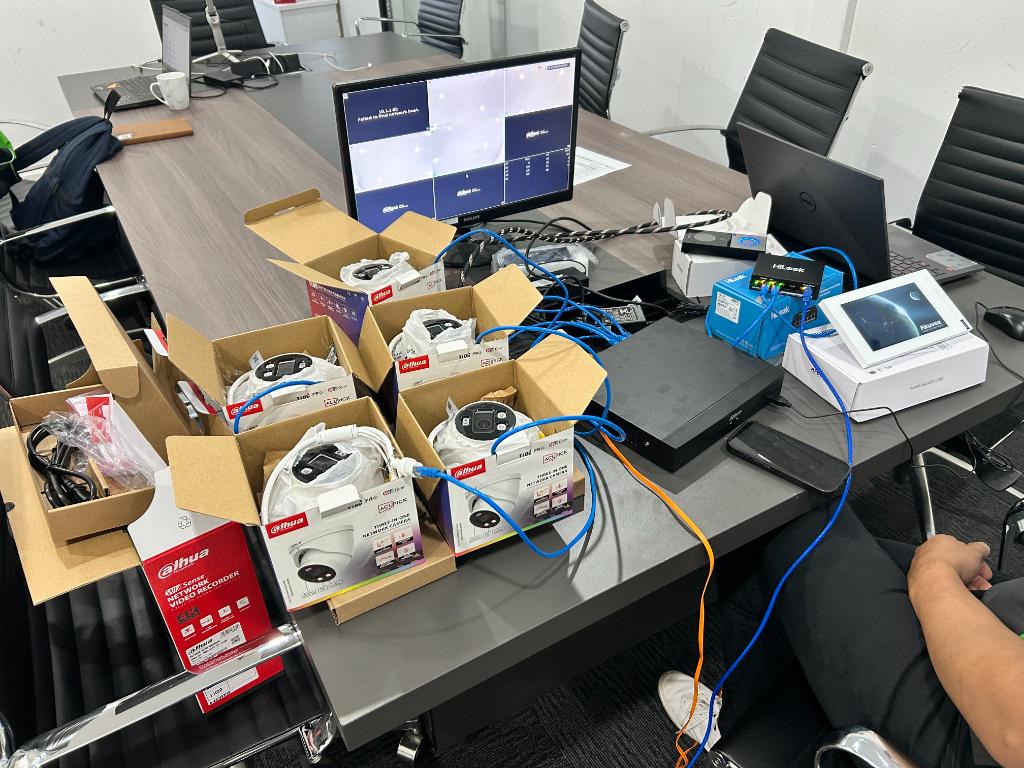

PERSONAL SETUP Bench testing a new CCTV & Intercom setup before deployment! 🚀

Post image
54 Upvotes

Hey everyone,

Setting up a fresh security and intercom rig for an upcoming project today!Doing all the staging and configuration in the conference room to catch any firmware bugs, IP conflicts, or hardware issues before we step foot on site.

Hardware on the test bench:

  • Dahua TiOC (Three-In-One Camera) turret cameras w/ AcuPick AI
  • Dahua WizSense 4K NVR
  • Akuvox Smart Intercom indoor display unit
  • HiLook PoE Switch

Always a fan of blue patch cables taking over the table during staging day.

How many of you guys stage 100% of your gear in-office first, or do you prefer configuring directly on-site?


r/homeautomation • • 1h ago

QUESTION Looking for Zooz Alternatives...

Thumbnail
‱ Upvotes

r/homeautomation • • 2h ago

HOME ASSISTANT I made JARVIS Interface using HA Voice Hermes Agent, wake word, custom TTS with interruption and open sourced it

Thumbnail
github.com
0 Upvotes

So I built hermes-jarvis, which connects to your hermes instance, and uses HA voice to listen for "Hey Jarvis" wake word.

- Long running, agentic replies are spoken smartly, as soon as the brain produces them. So code blocks are not read line by line, and the response becomes shorter, the longer it takes.

- The stop word and the wake word work during long jobs, and "stop" silences the reply without cancelling the job.

- If the reply ends in a question, the device listens again by itself.

- Works with Hermes agent or anything OpenAI-compatible (Ollama, etc.), with cloud or fully local speech to text, and Piper for TTS

- Own firmware (stock plus a few changes) flashable from the browser; Docker image; small web UI with a live view

Caveats: tested on the Voice PE only. The device serves one voice client, so it can't be used with HA at the same time. No timers or HA device control.


r/homeautomation • • 3h ago

QUESTION Using HA to monitor my 2 EV's (Jaguar I-Pace & Citroën C4e)

Thumbnail
1 Upvotes

r/homeautomation • • 3h ago

QUESTION Smart Home Ideen

0 Upvotes

Hallo. Ich dachte, ich teile hier mal mein Smart Home Setup. Habt ihr irgendwelche VorschlĂ€ge fĂŒr Produkte, Automatisierungen oder andere Ideen?

**GerÀte & Apps**

- WiZ: Smarte Steckdosen und GlĂŒhbirnen

- TAWOIA smarte Alexa WLAN-Lichtschalter, gesteuert ĂŒber die Smart Life App

- Home Assistant auf einem alten Rechner via VirtualBox, verbunden mit einem SONOFF Dongle M

**Wohnzimmer**

- Smarter Lichtschalter (TAWOIA)

- Roborock Q10 S5+ Saugroboter

- Alexa Dot

- Stehlampe und Deckenleuchte: jeweils mit einer smarten WiZ-Birne ausgestattet

**Balkon**

- Lichterkette an einer smarten WiZ-Steckdose (im Wohnzimmer)

**KĂŒche**

- Echo Pop (Alexa)

- NFC-Tags an der Wand (fĂŒr Einkaufsliste und Auswahl von NFC-getriggerten Timern)

- Waschmaschine und SpĂŒlmaschine: jeweils an eine smarte WiZ-Steckdose angeschlossen

- Deckenleuchte: 4 Birnen, davon 3 smart. Der Lichtschalter selbst ist nicht smart, daher muss er immer an bleiben, um die Birnen steuerbar zu halten.

**Zockerzimmer**

- Smarter Lichtschalter (TAWOIA)

- Selinas PC und Pascals PC: jeweils an eine smarte WiZ-Steckdose angeschlossen

- Selinas Schreibtischlampe mit smarter WiZ-Birne

- Echo Show 5 (2018) – Alexa mit Bildschirm

- Cannabis Grow Box: Mars Hydro Grow-Lampe an einer smarten Steckdose, dazu ein Mars Hydro LĂŒfter, ein Kasa Hub und ein Kasa Thermostat

**Schlafzimmer**

- Smarter Lichtschalter (TAWOIA)

- WLAN-Smarte Steckdose an einer Wandsteckdose mit VerlĂ€ngerungskabel; zum Laden eines GerĂ€ts (Person 1 Ladekabel) Eine Steckdosenleiste ist an eine weitere Steckdosenleiste angeschlossen, die zum Ladekabel fĂŒr Person 2 fĂŒhrt.

**Flur**

- Tapo Kamera

**Badezimmer**

- 2 smarte GlĂŒhbirnen in der Deckenleuchte. Der Lichtschalter ist nicht smart, daher muss er immer in der "An"-Position bleiben.

GerÀte, die sich nicht in Home Assistant integrieren lassen:

- Govee H5075 Thermometer

- 2 TĂŒr-/Fensterkontaktsensoren von LEDVANCE SMART+ (an der HaustĂŒr und der BadezimmertĂŒr)


r/homeautomation • • 3h ago

DISCUSSION Using AI to monitor their house instead of just building dashboards

Thumbnail
0 Upvotes

r/homeautomation • • 10h ago

NEWS LLM in HA

3 Upvotes

I was frustrated by the limited LLM options for HA. ha-llm-agent is a side project I’ve been using at home. Just feed it an API key and it can:

  • write automations and dashboards
  • control stuff
  • answer history questions
  • dig through traces and logs when something breaks
  • pretty much anything else you do

It shows a diff before changing anything, and there’s undo.

Works with Claude, OpenAI, Gemini or Ollama, using your own key. Installs through HACS.

https://github.com/nuedynamics/ha-llm-agent

Bug reports welcome, PRs welcome, forks welcome.

I've used it to

  • Set up my Philips hue to have a spooky halloween breathing mode
  • make a dashboard to control my lights
  • fix it so my house isn't so cold in the morning (I had a summer AC automation set up and it didn't carry over to winter well)

r/homeautomation • • 9h ago

QUESTION Garage door controller, preferably Z-wave, but I dunno.

2 Upvotes

I have two garage doors. Both of course have openers. I had two GoControl units, one on each. Both have gone belly up, the position sensor still works on one, but no control and nothing on the other.

Is there a better home installed solution? I suppose I prefer Z-wave because I like to keep devices off my wifi network, and since it's mesh the more the merrier. I can bite it and just get two more of these, I think they are on GD00Z-12 or some such by now, mine are models like 4 and 6.

So is there a better solution or should I just replace them? Please don't use the word Chamberlain. I don't want monthly fees for a garage.

update: I just repaired my z-wave network and now one works.


r/homeautomation • • 6h ago

PROJECT Local control for a Xiaomi Smart Tower Heater from the macOS menu bar, no cloud (open source)

0 Upvotes

My Xiaomi Smart Tower Heater Lite only had the Mi Home app, so I wrote a menu bar app that talks to it directly on the local network with the miIO protocol.

What it does:

  • Power, target temperature, modes and oscillation from the menu bar
  • Smart Auto: reads the heater's room sensor, runs Heat when the room is 1.5 °C or more below the target, Warm when it's close, and pauses at target + 0.5 °C (with a 10 min minimum pause to avoid short cycles)
  • While Auto is on it keeps renewing the heater's own off-timer, so if the Mac sleeps or the app quits, the heater turns itself off within 60 min
  • Logs to CSV and shows a 7-day kWh/€ estimate. It's an estimate from the mode, the heater doesn't measure power

It reads the model's MIoT spec, so other Xiaomi/Mijia heaters might work, but I've only tested the nfj3lx on real hardware. One quirk I hit: its firmware accepts the "on" property write, answers OK, and ignores it. The app uses the heater's toggle action instead.

You need macOS 26 and Xcode 26 to build it (./build.sh --install), plus the device token, which you can get with Xiaomi Cloud Tokens Extractor. No telemetry. The only request outside your LAN is a one-time download of the model spec from miot-spec.org.

MIT: https://github.com/Deehlusa/mi-heater-bar

If you have a different Xiaomi heater and try it, I'd like to know if it works.


r/homeautomation • • 6h ago

QUESTION DISPOSITIVOS AJAX: CUALES ELEGIR?

1 Upvotes

Buenas noches, quería comentaros que al final después de buscar varias empresas de alarmas, casi firmar un contrato de tres años por una alarma que tenía los productos Ajax.

He decidido que lo mejor va a ser instalĂĄrmelo yo mismo y gestionĂĄrmelo yo mismo ya que al fin y al cabo, siempre que pasa algo con las empresas no es su culpa y estoy un poco cansado de que muchas opiniones sean siempre lo mismos.

Y para que fallen en mi seguridad prefiero fallar yo y tener un buen seguro.

La pregunta es yo teniendo un piso de al menos 80 mÂČ, quĂ© kit me recomendarĂ­ais hacer y si podĂ©is decirme las pĂĄginas de donde lo comprasteis aunque veo que el Ajax estĂĄ en todas las pĂĄginas de proveedores lo agradecerĂ­a.

Gracias un saludo.


r/homeautomation • • 7h ago

QUESTION Wireless control of Underfloor Heating

Thumbnail
1 Upvotes

Would like to add that i plan to use home assistant to control every smart thing in my house, and would like to know which brand with good price to get.


r/homeautomation • • 15h ago

PERSONAL SETUP Home Assistant was too heavy for my offline cellar Pi Zero 2 W, so I built a lightweight Zigbee2MQTT automation engine (open source)

3 Upvotes

Hi all. I've been running Zigbee2MQTT for a while and wanted something much lighter than a full home automation platform for my automations. So I built Homeland, and I'm sharing it in case it's useful to others here.

Why I built it

I run a few independent Zigbee networks, each with its own Mosquitto + Zigbee2MQTT + Homeland stack: a main smart home setup with 60+ devices, and a tiny security setup in the cellar with 5-6 devices and no Wi-Fi or internet reach at all.

Home Assistant is great, but it wants real hardware (a recent Raspberry Pi with a few GB of RAM) and brings a lot of moving parts I don't need. The cellar box has to be small, cheap and power-efficient, and keep running on its own once it's set up. A Raspberry Pi Zero 2 W (512 MB RAM) running DietPi handles the whole Mosquitto + Zigbee2MQTT + Homeland stack there. The main network runs on a Pi 5.

Every network, big or small, uses the same engine and workflow:

  • Everything is set up over SSH: configuration is environment variables, automations are plain .js files
  • The scripts directory is a git repo, so every automation is versioned, diffable and easy to roll back or copy to a fresh box

I wanted automations that feel like code I own, not state hidden in a database behind a UI, and boxes I can leave alone for months. Nothing I found fit all of that, so I wrote it.

What it is: a single service (one static binary, or a scratch-based container) that connects to your MQTT broker, tracks every z2m device and its latest state, and runs small JavaScript handlers you write. One file per device, named after its friendly name or IEEE address.

A complete automation looks like this:

// scripts/livingroom-lamp-switch.js
function handle(state, ctx) {
  if (state.action === 'on')  ctx.z2m.publishProp('livingroom-lamp', 'state', 'ON');
  if (state.action === 'off') ctx.z2m.publishProp('livingroom-lamp', 'state', 'OFF');
}
module.exports = { handle };

Scheduled jobs use plain cron syntax:

// scripts/livingroom-lamp.js
module.exports = {
  jobs: [{ cron: '0 22 * * *', run: (ctx) => ctx.z2m.publishProp('livingroom-lamp', 'state', 'OFF') }],
};

Features

  • handle(state, ctx) runs on every state update with the device's full latest state
  • Cron jobs per script (timezone-aware, CRON_TZ= override)
  • ctx.z2m.getState() to read any other device's state, for cross-device logic
  • Optional second MQTT broker via ctx.mqtt for non-Zigbee stuff
  • Every device event is stored in embedded SQLite with automatic retention, tuned to keep disk writes modest (SD cards will thank you)
  • Small web UI + JSON API: devices, current state, event history, and the status of each script (including compile errors)
  • Optional hot reload when you edit a script, so git pull on the box is a deploy
  • Each script gets its own isolated JS runtime with a timeout, so a broken or slow script doesn't take anything else down. Devices are processed in parallel, so one slow handler doesn't hold up the others
  • TypeScript declarations for editor autocomplete while writing scripts on your laptop
  • No internet needed at runtime. Multi-arch image (amd64/arm64); runs on a Pi Zero 2 W next to Mosquitto and z2m, and on a Pi 5 with 60+ devices

What it isn't: it's not a Home Assistant replacement. There are no dashboards, no integrations beyond MQTT, and no visual editor. It's meant for people who'd rather write a few lines of code than click through a flow editor or write YAML rules, and for small, headless, offline boxes where a full platform doesn't fit.

Requirements / caveats

  • z2m needs device_options.retain: true so Homeland knows every device's state after a restart
  • The UI/API has no authentication yet. Run it on a trusted LAN, or behind an authenticating reverse proxy
  • Scripts are trusted code. The JS runtime limits what they can reach, but it's not a security sandbox
  • It's early (v0.1.0), so expect rough edges

There's an example docker-compose stack (Mosquitto + Zigbee2MQTT + Homeland) in the repo to try it quickly.

Repo: https://github.com/homeland-live/homeland (MIT)

I'd love feedback, especially on the scripting API and on what you'd want next. Happy to answer questions.


r/homeautomation • • 19h ago

HOME ASSISTANT Live demo of a custom irrigation controller for Home Assistant available now from HACS

Post image
7 Upvotes

I've been building ZoneFlow, a custom integration that makes Home Assistant the irrigation controller. It started while ago and has grown a lot, so I made a live demo you can try first.

Live demo, no install: https://zoneflowirrigation.com/demo

It’s a simulated garden with a guided tour. Click around and see how it behaves.

All you need is a valve switch. Every sensor is optional, and each one you add unlocks a bit more.

What it does

  • Waters by need. A light routine watering plus an occasional deep soak per zone. Choose temperature tiers, or an evapotranspiration (ET) curve that follows the weather. It adjusts for plant type, soil, drainage, slope and mulch, with a growth ramp for young plants and a deficit mode for dry spells.
  • Uses rain if you can tell it about rain. A rain gauge, a weather station, rain you enter by hand, or just the forecast. It takes the rain that actually fell off the watering target, and has a frost guard and an optional soil moisture sensor.
  • Says why. A plain-words status for every zone (“Skipped: the soil is wet (72%)”), and a “Why?” button that shows the numbers behind the next watering.
  • Safety first. Runtime caps, a stuck-valve watchdog, a pump check, and recovery after a power loss or restart. Zones that share a pump take turns.
  • Areas and plants. Group zones into the parts of your garden that share a rain gauge and thermometer, each with its own Pause and Snooze Today. Each zone has plants with a history, and nursery seedlings can be followed to a “ready to move” day with a phone message.
  • Greenhouses. Fans, vents, misters and a heater from an inside sensor, with several crops under one greenhouse.
  • Easy setup, no YAML. A Quick setup asks only for the valve, how the water is delivered and how much it gives. It suggests sensors it finds in your HA. There’s a guided flow-rate calibration, a “Check my setup” checklist, ready-made dashboard cards and a one-click dashboard.
  • Water use in litres or gallons, per watering, for the last 30 days and for the year.
  • Day to day. Water now for N minutes, copy a bed’s settings or save them as a preset, buttons on phone messages, and 19 languages.

I’d like to hear what feels confusing in the tour or first setup, and what’s missing for your garden.


r/homeautomation • • 10h ago

PERSONAL SETUP Wrote a HA integration for my Apple TV app: local push, media browser, resume, wake + launch

Thumbnail
1 Upvotes

r/homeautomation • • 11h ago

QUESTION DCS-6501LH - SD card record as backup if disconetcs from wifi

0 Upvotes

The dlink camera DCS-6501LH has a rule that cloud recording and SD card cannot be used at the same time.

But in case where is no internet connection is not be able to record to sd card as a backup ??


r/homeautomation • • 11h ago

QUESTION Smart Bulb questions

1 Upvotes

Just getting started with home automation and primarily interested in lighting solutions, for now.

Current equipment: We have 2 Echo Dots and recently purchased 3 FEIT A19 smart LED color changing bulbs (mostly because they were the least expensive available). Had to download the FEIT app, but connection was relatively simple. I am able to operate them by voice and by the app.

Reading various posts on reddit, though, I'm starting to think that maybe I should be looking into Phillips Hue and a Bridge Pro. For reliability, longevity, and less data usage. Or am I misunderstanding what seems to be the opinion of many people here?

I did see a post that said the Phillips bulbs have a lot of flicker. Is that true?

On my own, I think I would slowly change all bulbs in the house to smart bulbs, but I have a couple of questions.

1) Is there a way to have voice activated bulbs that can also be controlled by a switch of some sort?
I am concerned about my husband and guests. It's probably not a problem in public areas, but guest rooms and bathrooms aren't necessarily in range of the Echo Dots. Are there any options that would allow non-tech-savvy people to turn on lights without having to shout at the Echo or have an app? Or would it be best to just leave regular bulbs in those areas?

2) Are there smart bulbs that are piano bulbs? A piano light and a couple of display cases use piano bulbs.
Are there smart piano bulbs, or is it best to use strip lights for the display cases?

3) Are there smart equivalents to bug lights?
We live in Florida. Outdoor lighting, especially around entrances, uses the yellow hued bulbs that do not attract insects? Are there smart bulbs for this purpose? Or is this something that can be achieved with the right color choice?

4) What would be the best equivalent to R20 bulbs?
We have a number of ceiling can lights.

5) Recommendations for color changing outdoor Christmas lights?

Thanks for any advice!


r/homeautomation • • 11h ago

DISCUSSION Thermostat Trigger for Open/Closed Windows

1 Upvotes

Curious if anyone has had success with an automation and what hardware you use to obtain the outcome.

I always forget to turn off my ecobee premium thermostat when I open the windows and vice versa.

Obviously, the consensus would be to put window sensors on the windows and when they open/close have the thermostat toggle on/off. I’m just wondering if anyone has a better way for the trigger to turn on/off when the windows open/close.

I have been testing some apps on my Homey Pro and creating automations from there but nothing is consistent. Just looking to hear what others are doing to achieve this.


r/homeautomation • • 11h ago

PERSONAL SETUP Connecting a 30 year old gate to a broken laptop converted into a server connected to Ring cameras

1 Upvotes

I took this old gate and put in a $25 tuya controller. Then i made an app for my iphone that gave me a lockscreen widget to open and close the gate. The iphone app makes requests to an old macbook running as server which makes calls to tuya. I then upgraded it by having it check my ring cameras to see the gate is open or closed. The server also check if my iphone is more than a mile from home and autocloses the gate if I forgot.


r/homeautomation • • 12h ago

NEW TO HA Smart Home Ideas

Thumbnail
0 Upvotes

r/homeautomation • • 19h ago

QUESTION BSEED Grand Series Switches - Disable status LED

3 Upvotes

I've recently had a house built here in Spain, and whilst looking for switches/sockets ended up choosing the bseed scale series. They looked decent and had a good range for the price.

My main issue at the minute is that every switch has a yellow/blue status led on the front. This isn't annoying for me, but my wife hates sleeping in a room with lights, and because we've got multiple lights/shutters and have put switches next to the bed, by the door, and by the doors to the terrace, it's 4 banks of 3 switches, and some double switches in each bank resulting in a lot of light.

The sockets give an option in Home Assistant to turn off the indication LED, but i'm not seeing anything for the switches.

Has anyone found a way to do this? I'd probably only want it activated when going to bed rather than a 24/7 thing as they're useful indicators usually.

Alternatively, anyone have an alternative which give this option and i might replace just the bedroom switches. The main criteria would be able to install modular 3 to 4 gang faceplates, rather than 3 or 4 individual switches.

Update, Zigbee2mqtt gives extra control and covers this. Now to just get the automation sorted.


r/homeautomation • • 1d ago

SECURITY Aparently SSH is easy on micro-controllers these days.

Post image
58 Upvotes

A while ago I wanted to start doing more projects with wired IP connections and wondered if SSH was possible so a regular webserver wasn't necessary.

There was some documentation for esp32s but not much else.

The fact that this works is hilarious to me. With .ssh keys properly setup doesn't even need the password.

https://github.com/RicardoJCMarques/SSH.RP

Now that I've had it working for a few days I'm starting to study how it can be useful but it does seem to have some use cases around lower long term certificate maintenance.

Can't upload videos but there's one on github.


r/homeautomation • • 1d ago

QUESTION Home Automation and VLANs

6 Upvotes

So, in moving to a new property - I decided to take the opportunity to overhaul my home networking and automation experience that had organically grown over the last 10 years in the old place.

I have
- all Unifi equipment for networking (AC Pro, Dream Machine Pro, Switches, etc)
- Eufy S380 Homebase 3 (set up in Edge mode) with 5 x E30 4k indoor cameras and a dual camera doorbell.
- multiple Alexa's (various models) all over the house.
- Philips HUE Bridge
- Tons of HUE bulbs and remotes
- Hubitat C-8 Pro
- 3 x Apple TV 4K (Gen 3)

I also run an Aoostar WTR Max 8845 NAS running TrueNAS and Plex Server

I used to have a ton of Zigbee switches, dimmers and stuff - but I left those behind (I moved to a rental property and had no real need of them anymore)

So... I carefully partitioned my network into
- main (Server, PC's, etc)
- media (Xbox Series X, Smart TV's, Apple TV's, Roku, etc)
- iot (Alexa's, other bits and bobs)

What a pain in the ass that was - making sure that everything was partitioned, switch ports were set correctly, routing rules, etc.

Then I introduced the Apple TV into the network and thought
- "Hey, you know what would be cool? If I could control my lights and cameras with Apple HomeKit"

Then everything went to crap... now I can't control the lights, HUE hub lost connection, AppleTV can't connect to anything - I have no idea what just happened.

Home Automation seems to really rely on everything being on the same network - VLANs seem to really confuse this stuff.

Is the network partitioning really worth all the hassle? It would all work just fine if it was all on a single subnet.

Any advice? Pointers to useful guides? Hints? What did I do wrong? Is it really worth it?


r/homeautomation • • 16h ago

PERSONAL SETUP I'd like a small form factor wifi USB switch that passes signal as well as power.

Thumbnail
1 Upvotes

r/homeautomation • • 18h ago

QUESTION Which Enabot should I buy?

Thumbnail
0 Upvotes
